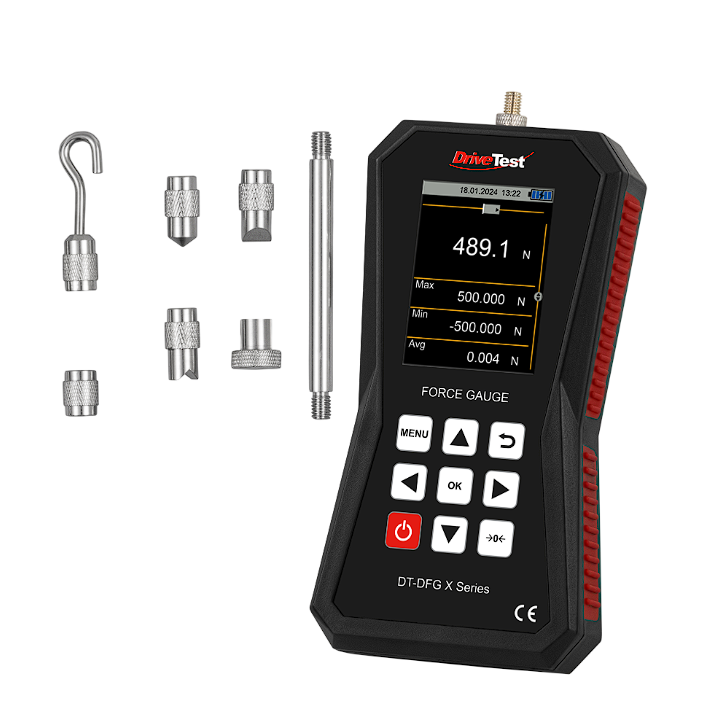

该测力装置内置应变片。它可用于拉力和压力测量。该装置的测量速率高达7,200赫兹，能够对脉冲式力进行测量。通过设备背部的M6螺丝连接件，可将测力装置安装在例如力试验台上，以进行可重复的测量。随附的适配器可支持多种应用的测量。所有数值均显示在液晶显示屏上。
二、DT-DFG X Serie技术参数：
内部力传感器
量程：5、10、20、200、500、1000 N
适配器套装
可调测量速率：1 … 7200 Hz
精度：± 0.05 % F.S.
液晶显示
USB-C 连接
PC 软件
32 GB 存储空间，可存储 3000 万个测量值
力值测量仪型号列表
DT-DFG 5 X, intern, Measuring range: ±5 N, Resolution: 0,001
NDT-DFG 10 X, intern, Measuring range: ±10 N, Resolution: 0,005
NDT-DFG 20 X, intern, Measuring range: ±20 N, Resolution: 0,01
NDT-DFG 200 X, intern, Measuring range: ±200 N, Resolution: 0,1
NDT-DFG 500 X, intern, Measuring range: ±500 N, Resolution: 0,1
NDT-DFG 1000 X, intern, Measuring range: ±1000 N, Resolution: 0,5

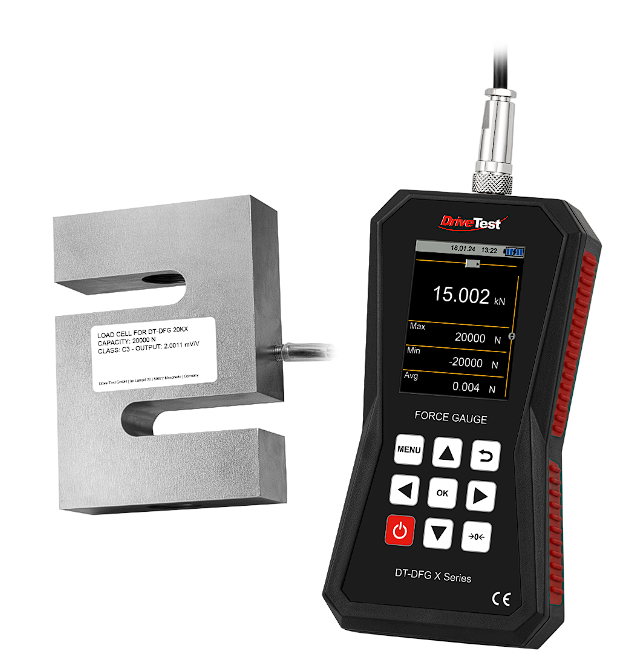

NDT-DFG 1K X, S Type, Measuring range: ±1 kN, Resolution: 0,5
NDT-DFG 2K5 X, S Type, Measuring range: ±2,5 kN, Resolution: 1
NDT-DFG 5K X, S Type, Measuring range: ±5 kN, Resolution: 1
NDT-DFG 10K X, S Type, Measuring range: ±10 kN, Resolution: 2
NDT-DFG 20K X, S Type, Measuring range: ±20 kN, Resolution: 2
NDT-DFG 50K X, S Type, Measuring range: ±50 kN, Resolution: 5
NDT-DFG 100K X, S Type, Measuring range: ±100 kN, Resolution: 10
NDT-DFG 0K5 XF, Compression Sensor, Measuring range: 0,5 kN, Resolution: 0,5
NDT-DFG 1K XF, Compression Sensor, Measuring range: 1 kN, Resolution: 0,5
NDT-DFG 2K XF, Compression Sensor, Measuring range: 2 kN, Resolution: 0,5
NDT-DFG 5K XF, Compression Sensor, Measuring range: 5 kN, Resolution: 1
NDT-DFG 10K XF, Compression Sensor, Measuring range: 10 kN, Resolution: 2
NDT-DFG 20K XF, Compression Sensor, Measuring range: 20 kN, Resolution: 2
NDT-DFG 50K XF, Compression Sensor, Measuring range: 50 kN, Resolution: 5
NDT-HFG 1K, Range: 0 … 1 k

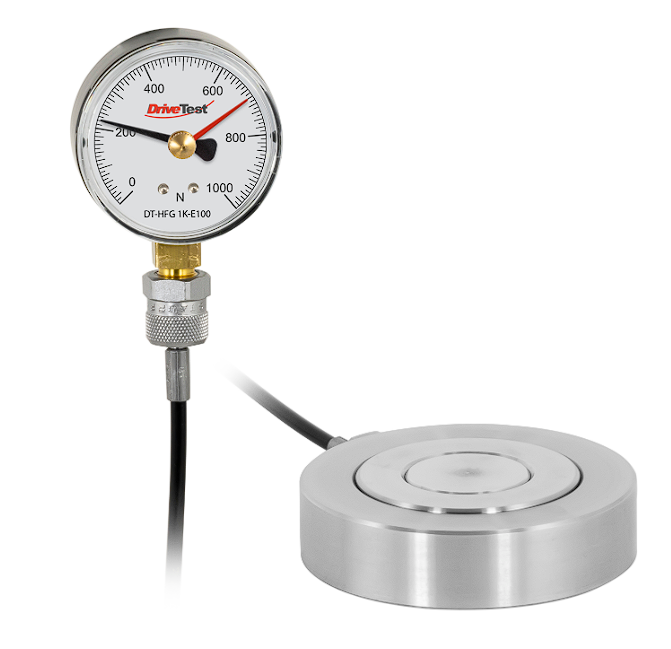

NDT-HFG 1K-E100, Mesbereich: 0 … 1 kN, with 1 m connecting hose
DT-HFG 2.5K, Range: 0 … 2,5 k
NDT-HFG 2.5K-E100, Range: 0 … 2,5 kN with 1 m connecting hose
DT-HFG 10K: Range 0 … 10 k
NDT-HFG 10K-E100, Range 0 … 10 kN, with 1 m connecting hose
DT-HFG 25K, Range: 0 … 25 k
NDT-HFG 25K-E100, Range: 0 … 25 kN, with 1 m connecting hose
